BV type certification for fire resistant, marine and offshore hoses

Test au feuBUREAU VERITAS MARINE
icone pdf

Rubber hoses 201 50 and 494 150 now have BV approval and are specially manufactured, on request only.

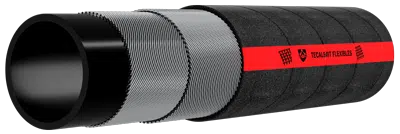

201 - Metal spiral compressed air hose 40 bar

norme

NF EN ISO 2398
3/C/NT

201 tuyau caoutchouc flexible

Technical specifications :
Inner tube : smooth oil resistant NBR rubber
Reinforcement : 2 or 4 metal spirals
Outer cover : abrasion and weather resistant neoprene rubber
Outer finish : fine tape wrapped
Temperature - 40°C to + 70° C
Production lengths : 60 meters
Colour : black
Marking : TECALEMIT - PART N° - EXCEED ISO 2398 3/C/NT - BATCH N° -  MICROPERFORATED

Part n° Inner
diameter
Outer
diameter
Wall
thickness
Working
pressuree
Burst
pressure
Bend
radius
Weight
  mm Inch mm mm bar bar mm kg/m
201 50 50,8 2" 68 9 40 160 450 2,8

More informations


494 - Hydrocarbon delivery hose
according ISO 15541
30 bar

402 tuyau caoutchouc flexible

Technical specifications :
Inner tube : smooth black NBR rubber
Reinforcement : 2 or 4 metal wire spirals
Outer cover : CR flame-extinguishing
Outer finish : fine tape-wrapped
Temperature : -40°C to +70°C
Production lengths : 60 meters
Colour : black
Marking Tecalemit by SEL - Part N°- Résistant au feu - ISO 15541 - MSHA - Marking

Part n° Inner
diameter
Outer
diameter
Wall
thickness
Working
pressure
Burst
pressure
Bend
radius
Weight
  mm Inch mm mm bar bar mm kg/m
494 150 152,4 6 176 12 30 160 800 10,75

More informations
